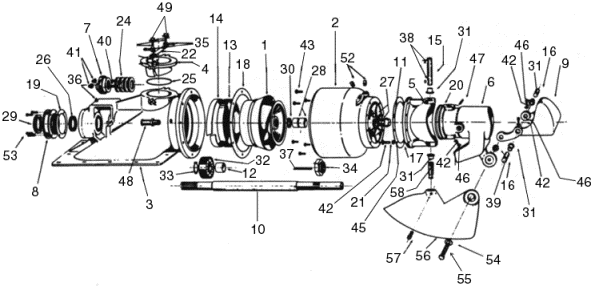

SYM
|
QTY
|
DESCRIPTION
|
BERK
PART NO
|
ATJ
PART NO
|
1
1
2
3
6
|
1
1
1
1
1
|
Impeller, Alum.
Impeller, Bronze
Split Bowl
Suction Piece
(w/ H.H. Cvr.)
Nozzle Housing |
L-2507
L-3495
H-1727
L-5026
|
IM-10-02
IM-30-02
SC-91-02
SC-10-06
R-10-07
|
7
8
10
12
13
|
1
1
1
1
1
|
Packing Gland
(Set 2)
Bearing Cap
Pump Shaft
Sleeve, Shaft
Seal
Wear Ring |
S-12727
S-15338
M-5356
S-14379
S-10125
|
SC-25-07
SC-20-07
SH-10-07
SH-25-07
IM-50-04
|
14
16
17
18
19
|
1
2
1
1
1
|
Insulator, Wear
Ring
Pin. Rev. Bkt.
Gasket, Noz.
Hsg.
Gasket, Bowl
Gasket, Brg.
Cap |
S-10068
S-10825
S-10870
S-9017
S-9018
|
IM-60-04
R-45-07
G-25-07
G-20-06
G-15-07
|
20
21
24
25
26
|
1
7
1
1
1
|
O-Ring, Nozzle
HHCS, Noz. Hsg.
(5/16 X I)
Set Packing
Rings
O-Ring, H.H.
Cvr.
Clipper Seal,
Suction |
S-17737
S-11408
S-14110
S-13734
S-14380
|
O-15-02
F-20-CS
SC-30-07
O-10-02
SL-15-07
|
27
28
29
30
31
|
1
2
1
1
4
|
HHCS, Noz. Hsg.
(5/16X1)
Bowl Bearing,
Glacier
Clipper Seal,
Brg. Cap
Clipper Seal,
Bowl
Nyliner Bushing
(3/4) |
S-23538
S-14483
S.14475
S-14476
S-14477
|
F-20-CS
B-15-02
SL-10-07
SL-20-03
B-20-07
|
32
33
34
37
38
|
1
1
1
1
2
|
Thrust Bearing
Snap Ring, Shaft
Impeller Lock
Nut
Key, Impeller
Key, Woodruff
#9 |
S-14063
S-14478
S-12005
S-14482
S-14481
|
B-10-07
SH-15-07
SH-35-07
SH-30-07
R-55-07
|
39
40
41
42
43
|
1
2
2
11
8
|
Lock Nut (3/8-24)
HHCS, Pkg. Gind,
(3/8 NF X 2)
Lock Nut, Pck.
Gind. (3/8 NF)
Lockwasher (5/16)
HHCS, Bowl (1/2X11/4) |
S-26431
S-23574
S-26573
S-23088
S-23621
|
F-10-LN
F-32-CS
F-10-LN
F-20-LW
F-41-CS
|
46
47
48
52
53
|
3
1
1
2
4
|
SHCS(5/16X1SH)
Set Screw, Tiller
(5/16 X 3/4)
Barbed Connector,
Water Outlet
Pipe Plug, Oil
Reservoir
SHCS, Brg Cap
(5/16x1 1/4 SH) |
S-25959
S-23665
S-14821
S-13883
S-25960
|
F-52-CS
F-13-SS
SC-45-07
SC-99-02
F-54-CS
|
