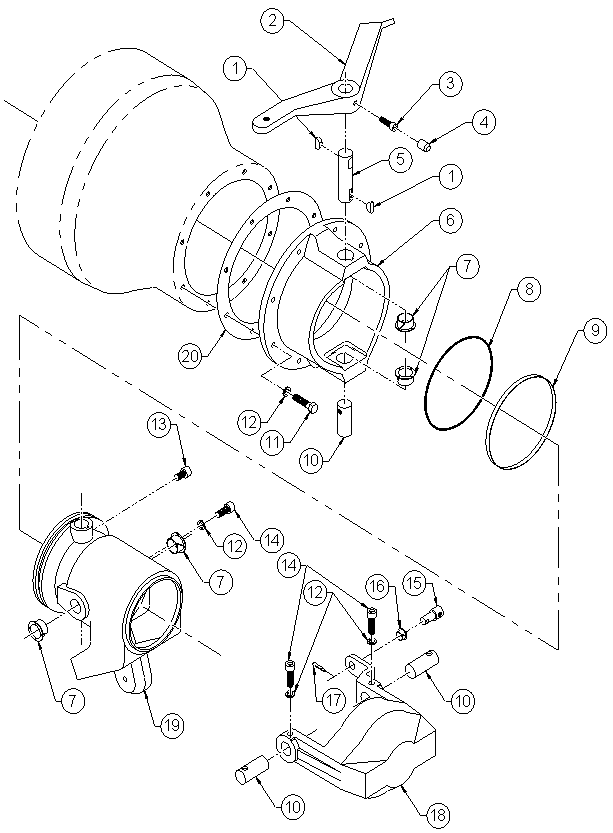

Berkeley Steering
Standard After Mid 2004
PART #RA1707
|
SYM |
DESCRIPTION
|
QTY. |
PART
NUMBER |
1
2
3
4
5 |
Woodruff Key #9
Tiller Arm
SHCS, 5/16-18 x 3/4
Vinyl Cap
Upper Tiller Pin |
2
1
1
1
1 |
R5507
R3001
F05 18 06 SH
M5001
BN2410 |
6
7
8
9
10 |
Nozzle Housing
Nyliner Bearing 3/4 x 3/4
O-Ring
Rubber Band (optional)
Lower/Reverse Bucket Pin |
1
4
1
1
3 |
R1007
B2007
O1505
??
BN2510 |
11
12
13
14
15 |
HHCS, 5/16-18 x 1-1/4
Lockwasher, 5/16
SHCS, 5/16-18 x 1/2
SHCS, 5/16-18 x 1
Pivot, Reverse Cable |
8
11
1
3
1 |
F05 18 10 HH
F05 LW
F05 18 04 SH
F05 18 08 SH
R5005 |
16
17
18
19
20 |
Nyliner, 3/8
Cotter Pin, 1/8 x 3/4
Reverse Bucket
Nozzle
Nozzle Housing Gasket |
1
1
1
1
1 |
B2105
F02 06 CP
R2101B
R1707
G2507 |
