American Turbine

American Turbine SD-309 Turbine Infomation

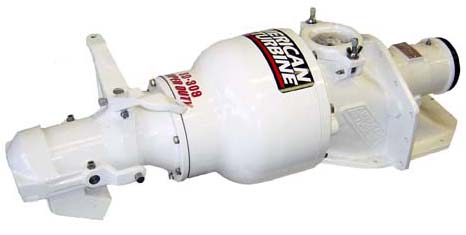

American Turbine SD-309 Jet Drive

MODEL SD-309

ADVANTAGES TO USING AMERICAN TURBINE'S NEW SUPER DUTY JET

  • Engine and jet sit four inches farther back for more interior room.
  • Bearing housing held on with six bolts instead of four to better support the rear of the engine.
  • Completely sealed bearing housing water can't come in around the driveshaft.
  • A larger thrust bearing 35% more load capacity
  • Mechanical pumpshaft seal, never needs adjusting.
  • Stronger 416 stainless steel pumpshaft.
  • Shouldered wear ring prevents cavitation.
  • Heat-treated aluminum impeller standard.
  • Secondary wear ring on the rear of the impeller to prevent bowl cavitation.
  • Jet will accept the new 9.5" impeller.
  • Tandem lip seals on the bowl bearings, keeps grease in grit out.
  • Fifth generation bowl, better flow than any other mixed flow pump.
  • High flow nozzle assembly with pressure sealed TFE o-ring that does not leak after a few hours.
  • Nozzle inserts to fine tune your boat for optimum take-off and top speed or part throttle fuel economy, i.e. smaller nozzle, higher pressure, better take-off and top speed, larger nozzle better cruise.
  • HTR reverse bucket, sand lock resistant, self-closing design, much easier on cable and shifter.
  • Highest static reverse of any mixed flow pump.
  • Tiller arm bolted on in two places for added safety.
  • Transom flange cast into suction housing, no need to make plates.
  • Transom flange bolts to transom so the integrity of the transom is increased.
  • Water off-takes are piped through the transom flange with a hose barb requiring less rigging time.
  • Ball and socket type steering kit, easier and quicker to center steering wheel and much nicer looking than two nuts and a piece of rubber hose.
  • Hand hole cover outside of transom for easier access.
  • Intake flange twice as thick for added strength.
  • Power and manual trims available. Light weight, 99 pounds (jet unit).
To return to the ATJ catalogue page, click here.
