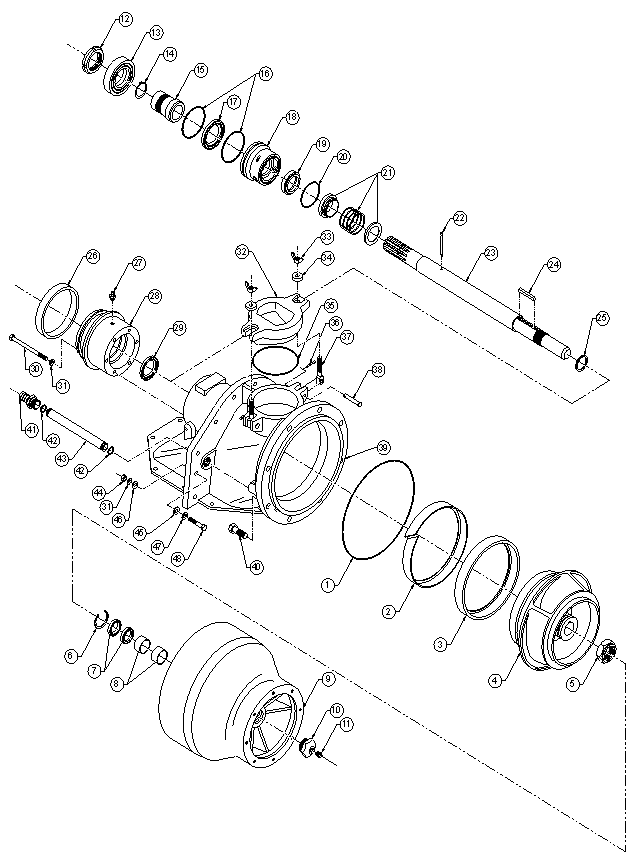

SYM |
DESCRIPTION
|
QTY. |
PART
NUMBER |
1
2
3
4
5 |
Bowl O-Ring
Wear Ring Liner
Wear Ring
Impeller
Impeller Nut |
1
1
1
1
1 |
O3101
WR6004
WR5000
IMA***
SH3507 |
6
7
8
9
10 |
Bowl Snap Ring
Bowl Seals
Bowl Bearings
Bowl
Bowl Plug |
1
2
2
1
1 |
SC9201
SL2003
B1502
SC9301
SC9001 |
11
12
13
14
15 |
Grease Zert
Bearing Sleeve Nut
Bearing
Snap Ring
Bearing Sleeve |
1
1
1
1
1 |
SC8901
SH5101
B1101
SH1507
SH5001 |
16
17
18
19
20 |
O-Ring Bearing Housing
Seal Face Housing Seal
Seal Face Housing
Ceramic Seal
O-Ring Seal Face Housing |
2
1
1
1
1 |
O3301
SL1201
SH5201
SL4008
03401 |
21
22
23
24
25 |
Mechanical Seal
Cotter Pin, 5/32 x 2
SD Shaft
Impeller Key
Shim Kit |
1
1
1
1
1 |
SL4008
F03 16 CP
SH1207
SH3007
SHK4007 |
26
27
28
29
30 |
Engine Mount Ring
Grease Zert
Bearing Housing
Bearing Housing Seal
HHCS, 5/16-18 x 4-1/2 |
1
1
1
1
6 |
SC4007
SC8901
SC2101
SL1101
F05 18 36 HH |
31
32
33
34
35 |
Lockwasher, 5/16
Hand Hole Cover
Wing Nut, 3/8-16
Thick Washer, 3/8
Hand Hole Cover O-Ring |
16
1
2
2
1 |
F05 LW
SC1701
F06 16 WN
F06 TW
O1002 |
36
37
38
39
40 |
Cotter Pin, 1/8 x 1/2
Eye Bolt, 3/8-16
Clevis Pin, 5/16
Suction Piece
HHCS, 1/2-13 1-1/2 |
2
2
2
1
8 |
F02 04 CP
F06 16 EB
F05 CL
SC1301
F08 13 12 HH |
41
42
43
44
45 |
Barbed Connector, 3/4
Cooling Tube O-Ring
Water Tube
Hex Nut, 5/16-18
Bushing, Bolt Seal 5/16 |
1
2
1
10
10 |
SC4607
O3201
SC4401
F05 18 HN
M4301 |
46
47
48
|
Neobond Washer, 5/16
An Washer, 5/16
HHCS, 5/16-18 x 1-1/2
|
10
10
10
|
F05 NW
F05 AN
F05 18 12 HH
|
