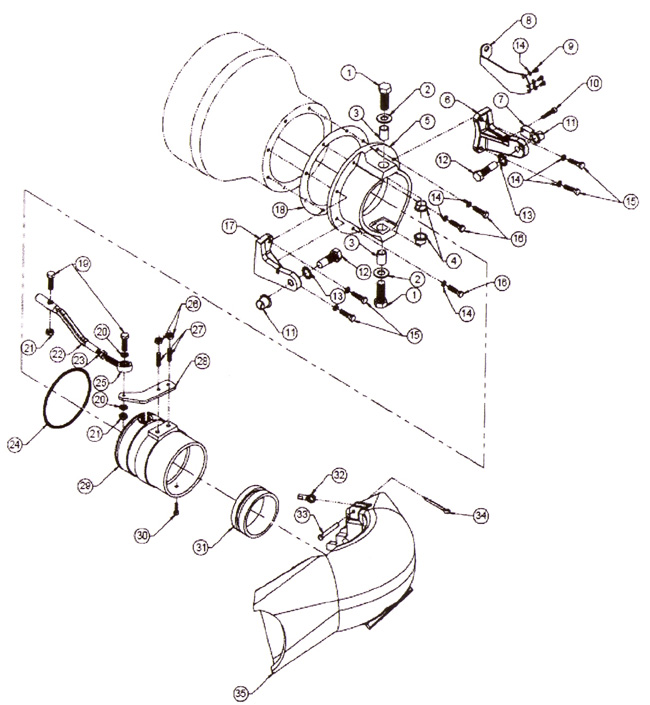

SDR STEERING (SPLIT DUCT REVERSE)
PART #RA1707
|
SYM |
DESCRIPTION
|
QTY. |
PART
NUMBER |
1
2
3
4
5 |
HHCS, 5/8-11 x 1-3/4
Thick Washer, 5/8
Bolt Bushing, 5/8
Nyliner Bushing, 3/4
Nozzle Housing |
2
2
2
2
1 |
F10 11 14 HH
F10 TW
RS2131
B2007
R1007 |
6
7
8
9
10 |
Bucket Bracket (Right)
Reverse Bucket Stop
Shift Cable Bracket
HHCS, 5/16-18 x 3/4
SHCS, 1/4-20 x 7/8 |
1
1
1
3
1 |
SR4001R
SR5101
SR2005
F05 18 06 HH
F04 20 07 SH |
11
12
13
14
15 |
1/2 X 1/2 Nyliner Bushing
Reverse Bucket Bolt
Star Lock Washer, 5/8
Lockwasher, 5/16
HHCS, 5/16-18 x 1-3/4 |
2
2
2
11
4 |
B2501
BN2210
F10 SW
F05 LW
F05 18 14 HH |
16
17
18
19
20 |
HHCS, 5/16-18 x 1-3/4
Bucket Bracket (left)
Nozzle Housing Gasket
HHCS, 3/8-24 x 1-1/4
An Flat Washer, 3/8 |
4
1
1
2
2 |
F05 18 14 HH
SR4001L
G2507
F06 24 10 HH
F06 AN |
21
22
23
24
25 |
3/8-24 Thin Lock Nut
Off-set steering ext.
Hex Nut, 3/8-24
Nozzle O-Ring
Male Rod End, 3/8-24 |
2
1
1
1
1 |
F06 24 TL
SR6001
F06 24 HN
O1505
F06 24 MRE |
26
27
28
29
30 |
Lock Nut, 5/16-18
Set Screw, 5/16-18 x 1-1/2
Tiller Arm
Nozzle
HHCS, 5/16-18 x 1 |
2
2
1
1
1 |
F10 11 14 HH
F10 TW
RS2131
B2007
R1007 |
31
32
33
34
35 |
Nozzle Insert
Female Rod End, 1/4-20
Clevis Pin, 1/4
Cotter Pin, 5/64 x 3/4
Reverse Bucket |
1
1
1
1
1 |
R73
F04 20 FRE
F04 CL
F01 06 CP
SR2101 |
